初识gRPC

gRPC和RESTful API是两种流行的服务通信方案，相比RESTful API，gRPC性能更强、开发效率更高、跨语言支持更完善，在许多场景下得到应用。

本文对gRPC的整体情况做一个简要介绍，首先基于. NET 8来实现gRPC，最后介绍基于. NET Framework 4.8来实现和部署gRPC服务。

Proto文件

以下proto文件创建了两个远程调用函数，并且定义了四个消息用于传参和返回值：

syntax = "proto3";

option csharp_namespace = "GrpcService1";

package greet;

service Greeter {
  rpc SayHello (HelloRequest) returns (HelloReply);
  rpc Compute (ComputeData) returns (ComputeResult);
}

message HelloRequest {
  string name = 1;
}

message HelloReply {
  string message = 1;
}

message ComputeData{
  string name = 1;
  int32 age = 2;
  repeated string hobbies = 3;
  map<string, int32> scores = 4;
  Address address = 5;
  enum Gender {
    UNKNOWN = 0;
    MALE = 1;
    FEMALE = 2;
  }
  Gender gender = 7;
}

message ComputeResult{
  string res=1;
}

message Address {
  string city = 1;
  string street = 2;
}

• proto中的message类似C#中的class，可以包含普通数据类型、数组、字典、嵌套message和枚举。
• message的定义是使用gRPC的核心之一。

服务端

主要步骤

• 创建ASP.NET Core gRPC服务项目
• 创建proto文件，自动生成后台代码
• 创建服务（依赖自动生成的后台代码）
• 在主函数中对服务进行发布

服务实现

定义服务类，继承自动生成的类，重载远程调用函数即可：

public class GreeterService : Greeter.GreeterBase
{
    private readonly ILogger<GreeterService> _logger;
    public GreeterService(ILogger<GreeterService> logger)
    {
        _logger = logger;
    }

    public override Task<ComputeResult> Compute(ComputeData request, ServerCallContext context)
    {
        StringBuilder sb = new StringBuilder();
        sb.AppendLine($"姓名：{request.Name}");
        sb.AppendLine($"年龄：{request.Age}");
        sb.Append($"爱好：");
        foreach (var hobby in request.Hobbies)
            sb.Append($"{hobby} ");
        sb.AppendLine();
        sb.Append($"成绩：");
        foreach (var (key,value) in request.Scores)
            sb.Append($"{key}-{value} ");
        sb.AppendLine();
        sb.AppendLine($"地址：{request.Address.City},{request.Address.Street}");
        sb.Append($"性别：{request.Gender.ToString()}");
        return Task.FromResult(new ComputeResult { Res = sb.ToString() });
    }

    public override Task<HelloReply> SayHello(HelloRequest request, ServerCallContext context)
    {
        return Task.FromResult(new HelloReply { Message = "Hello " + request.Name });
    }
}

服务发布

在主函数中对上述服务类进行注册：

public static void Main(string[] args)
{
    var builder = WebApplication.CreateBuilder(args);
    builder.Services.AddGrpc();
    var app = builder.Build();

    app.MapGrpcService<GreeterService>();
    app.MapGet("/", () => "Communication with gRPC endpoints must be made through a gRPC client.");

    app.Run();
}

服务部署

将gRPC服务部署到服务器并运行时，需要为其指定一个可见的端口，可以通过以下两种方式设置服务运行端口：

• 服务打包：在本实例中，采用了.NET框架进行开发，可以使用AOT的方式进行打包，打包完成之后会有一个exe程序以及多个json格式的配置文件

dotnet publish -c Release -r win-x64 --self-contained

• 代码中指定

var builder = WebApplication.CreateBuilder(args);
builder.WebHost.UseUrls("http://*:50051");

• 配置文件中指定：在appsettings.json中指定服务的运行端口

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",
  "Kestrel": {
    "EndpointDefaults": {
      "Protocols": "Http2"
    },
    "EndPoints": {
      "Http": {
        "Url": "http://*:50051"
      }
    }
  }
}

客户端

主要步骤

• 创建控制台程序

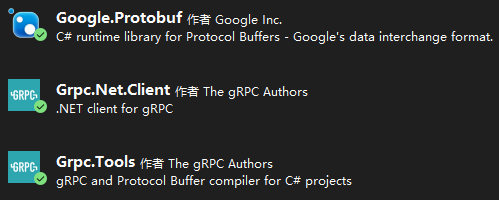

• 安装NuGet包

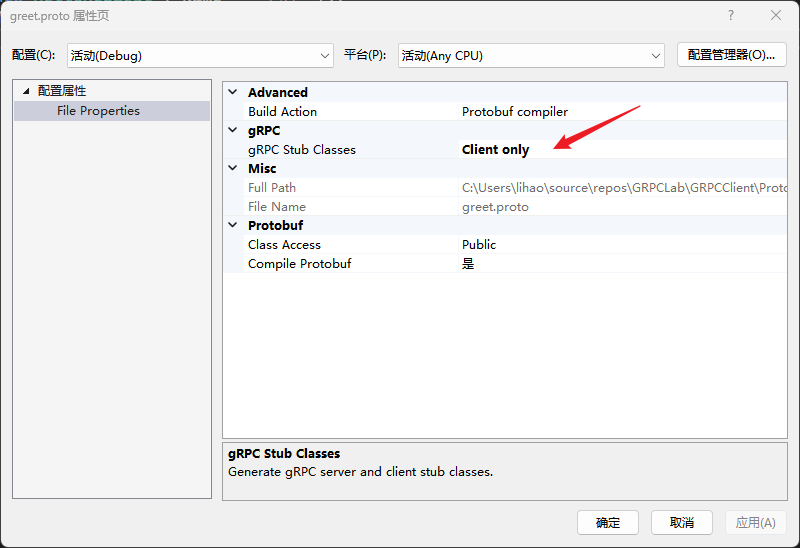

• 拷贝服务端的proto文件，设置其生成类型为Client only

• 在主函数中直接调用远程服务

调用服务代码

using Grpc.Net.Client;
using GrpcGreeterClient;

var channel = GrpcChannel.ForAddress("https://localhost:7109");
var client = new Greeter.GreeterClient(channel);
var reply = await client.SayHelloAsync(new HelloRequest { Name = "李浩" });

var data = new ComputeData()
{
    Name = "李浩",
    Age = 31,
    Hobbies = { "跑步", "看书", "编程" },
    Scores = { { "数学", 140 }, { "语文", 130 } },
    Address = new Address
    {
        Street = "和平大道",
        City = "武汉市",
    },
    Gender = ComputeData.Types.Gender.Male,
};

var computeReply = await client.ComputeAsync(data);

Console.WriteLine("Greeting: " + reply.Message);
Console.WriteLine("Compute Result:" + computeReply.Res);
Console.ReadKey();

proto生成代码的探究

对于以下简单的proto文件：

syntax = "proto3";
option csharp_namespace = "GrpcService1";
package greet;
service Greeter {
  rpc SayHello (HelloRequest) returns (HelloReply);
}
message HelloRequest {
  string name = 1;
}
message HelloReply {
  string message = 1;
}

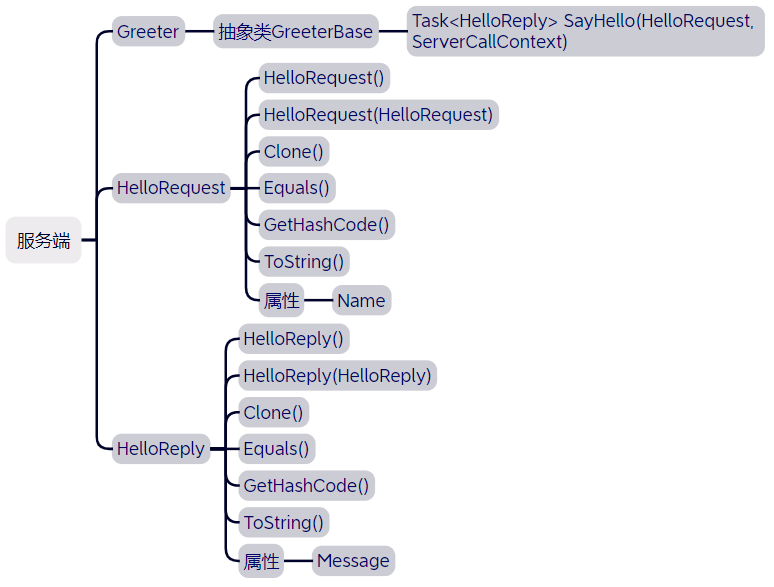

在服务端会生成如下图所示的代码元素：

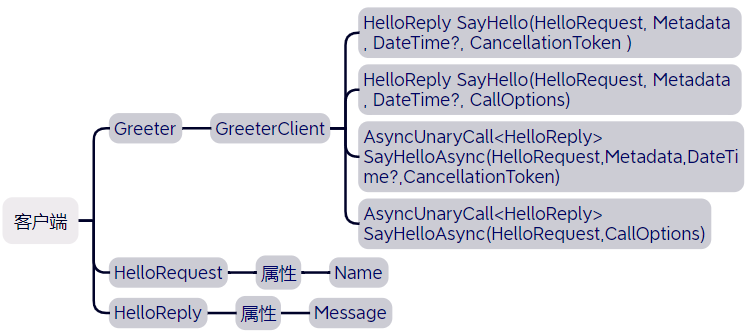

在客户端会生成如下图所示的代码元素：

使用proto文件的心智简化：

• 在服务端会自动生成一个抽象类（是嵌套类），其中定义了远程调用函数，用户需要定义新的服务类并具体实现该远程调用函数。
• 在客户端会自动生成一个类，其中会包含远程调用函数的多版本实现，用户直接调用这些函数就可以与服务端通信。
• 在proto文件中定义的message会转换成C#类，字段也会相应映射。
• 我们在使用gRPC时，只需要牢记以上三点并熟练掌握proto编写语法即可。

基于. NET Framework的gRPC

为什么要使用基于. NET Framework的gRPC服务？原因只有一个：我们的gRPC服务依赖. NET Framework的库！

基于. NET Framework实现与上述. NET 8相同的gRPC例子。

Proto类库项目

与其手动将proto文件拷贝到服务端和客户端项目，更好的一种方式是：在一个类库项目中添加proto文件，然后同时生成服务端和客户端代码，在服务端和客户端项目中引用该项目即可。

服务端

定义服务同. NET 8：

class GreetImpl : Greeter.GreeterBase {
    public override Task<ComputeResult> Compute(ComputeData request, ServerCallContext context) {
        StringBuilder sb = new StringBuilder();
        sb.AppendLine($"姓名：{request.Name}");
        sb.AppendLine($"年龄：{request.Age}");
        sb.Append($"爱好：");
        foreach (var hobby in request.Hobbies)
            sb.Append($"{hobby} ");
        sb.AppendLine();
        foreach (var pair in request.Scores) {
            sb.Append($"{pair.Key}-{pair.Value} ");
        }
        sb.AppendLine();
        sb.Append($"成绩：");
        sb.AppendLine();
        sb.AppendLine($"地址：{request.Address.City},{request.Address.Street}");
        sb.Append($"性别：{request.Gender.ToString()}");
        return Task.FromResult(new ComputeResult { Res = sb.ToString() });
    }

    public override Task<HelloReply> SayHello(HelloRequest request, ServerCallContext context) {
        return Task.FromResult(new HelloReply { Message = $"Hello {request.Name}" });
    }
}

主要区别是如何启动服务：

static void Main(string[] args) {
    int port = int.Parse(AppConfig.Get("port"));

    Server server = new Server {
        Services = { Greeter.BindService(new GreetImpl()) },
        Ports = { new ServerPort($"{AppConfig.Get("ip")}", port, ServerCredentials.Insecure) }
    };
    server.Start();

    Console.WriteLine($"Greeter Server Listening on port {port}");
    Console.WriteLine("Press Enter to exit");
    Console.ReadLine();

    server.ShutdownAsync().Wait();
}

• 在实际生产中，建议添加证书，保证通信安全。

客户端

服务端代码同. NET 8：

public static async Task Main(string[] args) {
    Channel channel = new Channel($"{AppConfig.Get("ip")}:{AppConfig.Get("port")}", ChannelCredentials.Insecure);
    var client = new Greeter.GreeterClient(channel);

    var reply = await client.SayHelloAsync(new HelloRequest { Name = "李诗吟" });

    var data = new ComputeData() {
        Name = "李若晗",
        Age = 1,
        Hobbies = { "跑步", "看书", "编程" },
        Scores = { { "数学", 140 }, { "语文", 130 } },
        Address = new Address {
            Street = "和平大道",
            City = "武汉市",
        },
        Gender = ComputeData.Types.Gender.Male,
    };

    var computeReply = await client.ComputeAsync(data);

    Console.WriteLine("Greeting: " + reply.Message);
    Console.WriteLine();
    Console.WriteLine("Compute Result:" + computeReply.Res);
    Console.ReadKey();
}

部署

以控制台程序的方式部署gRPC服务，可以使用NSSM工具（非常好用）将其部署成Windows服务，有以下几点需要注意：

• IP地址：使用0.0.0.0
• 端口：应该使用已经暴露出来的端口，例如50051

protobuf-net

在某些场景下，使用protobuf会有一些明显的不足：

• proto生成的代码存在较大冗余，如果一个项目的proto结构较复杂，这种影响可能比较大。
• proto屏蔽了语言差异，使用统一的格式定义数据结构，可以生成多种语言下的代码，这对于跨语言场景非常有用，但如果项目语言本身就是单一的，那么这种强大似乎显得多余！
• 通过proto生成的数据结构与程序中使用的数据结构还存在差异，开发者需要对两者进行转换（可借助AutoMapper等工具）。

protobuf-net为. NET量身定制，可以使用注解对. NET类直接进行标注，从而快速定义通信数据结构。

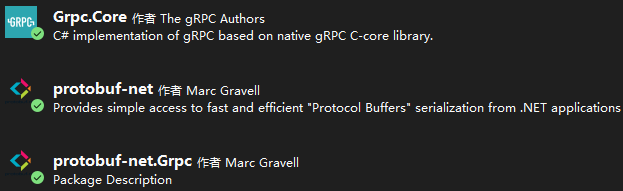

需要安装以下NuGet包：

服务定义

[ProtoContract]
public class HelloRequest {
    [ProtoMember(1)]
    public string Name { get; set; }
}

[ProtoContract]
public class HelloResponse {
    [ProtoMember(1)]
    public string Message { get; set; }
}

[Service]
public interface IHelloService {
    Task<HelloResponse> SayHello(HelloRequest helloRequest, CallContext context = default);
}

public class HelloService : IHelloService {
    public Task<HelloResponse> SayHello(HelloRequest helloRequest, CallContext context = null) {
        return Task.FromResult(new HelloResponse { Message = $"Hello, {helloRequest.Name}" });
    }
}

服务端

注意：创建Method时，前面两个字符串只起到标记作用，客户端与服务端保持一致即可，并不是用来定位服务函数的。

internal class Program {
    private static void Main(string[] args) {
        var method = new Method<byte[], byte[]>(
            MethodType.Unary,
            "HelloService",
            "SayHello",
            Marshallers.Create(
                data => data,
                data => data
            ),
            Marshallers.Create(
                data => data,
                data => data
            )
        );

        var server = new Server {
            Services = {
                ServerServiceDefinition.CreateBuilder()
                    .AddMethod(method, HandleSayHello)
                    .Build()
            },
            Ports = { new ServerPort("localhost", 50051, ServerCredentials.Insecure) }
        };
        server.Start();

        Console.WriteLine($"Greeter Server Listening on port {50051}");
        Console.WriteLine("Press Enter to exit");
        Console.ReadLine();

        server.ShutdownAsync().Wait();
    }

    private static Task<byte[]> HandleSayHello(byte[] requestData, ServerCallContext context) {
        var request = ProtobufNetSerializer.Deserialize<HelloRequest>(requestData);
        var response = new HelloService().SayHello(request).Result;
        return Task.FromResult(ProtobufNetSerializer.Serialize(response));
    }
}

public static class ProtobufNetSerializer{
    public static byte[] Serialize<T>(T obj) {
        using (var stream = new MemoryStream()) {
            Serializer.Serialize(stream, obj);
            return stream.ToArray();
        }
    }

    public static T Deserialize<T>(byte[] data) {
        using (var stream = new MemoryStream(data)) {
            return Serializer.Deserialize<T>(stream);
        }
    }
}

客户端

internal static class Program {
    private static void Main() {
        var channel = new Channel("localhost:50051", ChannelCredentials.Insecure);
        var invoker = new DefaultCallInvoker(channel);

        var method = new Method<byte[], byte[]>(
            MethodType.Unary,
            "HelloService",
            "SayHello",
            Marshallers.Create(
                data => data,
                data => data
            ),
            Marshallers.Create(
                data => data,
                data => data
            )
        );

        var requestData = new HelloRequest { Name = "LiRuohan" };
        var requestBytes = ProtobufNetSerializer.Serialize(requestData);
        var responseBytes = invoker.AsyncUnaryCall(
            method,
            null,
            new CallOptions(),
            requestBytes).ResponseAsync.Result;

        var response = ProtobufNetSerializer.Deserialize<HelloResponse>(responseBytes);
        Console.WriteLine(response.Message);

        Console.ReadKey();
    }
}

使用Rust的Tonic库实现gRPC

项目结构

proto文件如下所示：

syntax = "proto3";
package helloworld;

service Greeter {
    rpc SayHello (HelloRequest) returns (HelloReply);
}

message HelloRequest {
   string name = 1;
}

message HelloReply {
    string message = 1;
}

编写build.rs，用来自动生成Rust代码：

fn main() -> Result<(), Box<dyn std::error::Error>> {
    tonic_build::compile_protos("proto/helloworld.proto")?;
    Ok(())
}

项目配置文件是关键：注意prost的版本必须是0.13，用最新版会出问题！！！

[package]
name = "helloworld-tonic"
version = "0.1.0"
edition = "2024"

[[bin]] # Bin to run the HelloWorld gRPC server
name = "helloworld-server"
path = "src/server.rs"

[[bin]] # Bin to run the HelloWorld gRPC client
name = "helloworld-client"
path = "src/client.rs"

[dependencies]
tonic = "0.13"
prost = "0.13"
tokio = { version = "1.45", features = ["macros", "rt-multi-thread"] }

[build-dependencies]
tonic-build = "0.13"

# 以下设置是为了最小化生成文件
[profile.dev]
incremental = true # Compile your binary in smaller steps.
[profile.release]
codegen-units = 1 # Allows LLVM to perform better optimization.
lto = true        # Enables link-time-optimizations.
opt-level = "s"   # Prioritizes small binary size. Use `3` if you prefer speed.
panic = "abort"   # Higher performance by disabling panic handlers.
strip = true      # Ensures debug symbols are removed.

服务端

use tonic::{transport::Server, Request, Response, Status};

use hello_world::greeter_server::{Greeter, GreeterServer};
use hello_world::{HelloReply, HelloRequest};

pub mod hello_world {
    tonic::include_proto!("helloworld");
}

#[derive(Debug, Default)]
pub struct MyGreeter {}

#[tonic::async_trait]
impl Greeter for MyGreeter {
    async fn say_hello(
        &self,
        request: Request<HelloRequest>,
    ) -> Result<Response<HelloReply>, Status> {
        println!("Got a request: {:?}", request);

        let reply = HelloReply {
            message: format!("Hello {}!", request.into_inner().name),
        };

        Ok(Response::new(reply))
    }
}

#[tokio::main]
async fn main() -> Result<(), Box<dyn std::error::Error>> {
    let addr = "0.0.0.0:50051".parse()?;
    let greeter = MyGreeter::default();

    Server::builder()
        .add_service(GreeterServer::new(greeter))
        .serve(addr)
        .await?;

    Ok(())
}

客户端

use hello_world::greeter_client::GreeterClient;
use hello_world::HelloRequest;

pub mod hello_world {
    tonic::include_proto!("helloworld");
}

#[tokio::main]
async fn main() -> Result<(), Box<dyn std::error::Error>> {
    let mut client = GreeterClient::connect("http://192.10.49.135:50051").await?;

    let request = tonic::Request::new(HelloRequest {
        name: "Tonic".into(),
    });

    let response = client.say_hello(request).await?;

    println!("RESPONSE={:?}", response);

    Ok(())
}

在AutoCAD中集成gRPC服务

如何实现这种需求：在服务端部署AutoCAD，当收到客户端请求时，怎么能驱动AutoCAD绘图？

这种场景非常适合使用gRPC服务！以插件形式开发gRPC服务，在插件初始化函数中启动gRPC服务，从而实时监听客户端请求。当服务端绘图完成之后，可以保存图纸并通过MinIO服务传输文件。

由于2024及以下版本的AutoCAD使用.NET Framework作为开发平台，所以和《基于. NET Framework的gRPC》的集成方式基本一致，不同之处在于服务初始化位置。

Proto文件

syntax = "proto3";

package cadservice;

service Drawer {
  rpc DrawLine (LineRequest) returns (LineResponse);
}

message LineRequest {
  double x1 = 1;
  double y1 = 2;
  double x2 = 3;
  double y2 = 4;
}

message LineResponse {
  bool isSuccess = 1;
  string filePath = 2;
}

服务端实现

• 在插件初始化函数中启动服务，并进行其它的初始化工作

using Autodesk.AutoCAD.Runtime;
using Cadservice;
using Grpc.Core;
using AcadApp = Autodesk.AutoCAD.ApplicationServices.Application;

[assembly: ExtensionApplication(typeof(CADGRPCServer.Init))]
namespace CADGRPCServer {
    internal class Init : IExtensionApplication {
        public void Initialize() {
            AcadApp.BeginQuit += BeginQuit;

            // 初始化同步上下文
            AcadOperationQueue.Initialize();

            // 启动GRPC服务
            StartService();
            AcadApp.DocumentManager.MdiActiveDocument.Editor.WriteMessage("\nGRPC服务已启动，监听端口50051。\n");
        }

        public void Terminate() {
            AcadApp.BeginQuit -= BeginQuit;
        }

        private void BeginQuit(Object sender, EventArgs e) {
            // 终止GRPC服务
            StopService();
        }


        #region GRPC服务管理
        private Server _grpcServer = null;

        private void StartService(string ip = "0.0.0.0", int port = 50051) {
            if(_grpcServer != null) return;

            _grpcServer = new Server {
                Services = { Drawer.BindService(new DrawerImpl()) },
                Ports = { new ServerPort(ip, port, ServerCredentials.Insecure) }
            };
            _grpcServer.Start();
        }

        private void StopService() {
            if(_grpcServer == null) return;

            _grpcServer.ShutdownAsync().Wait();
        }
        #endregion
    }
}

• 服务实现：绘图，并将成果上传至MinIO服务器供客户端下载

class DrawerImpl : Drawer.DrawerBase {
    public override async Task<LineResponse> DrawLine(LineRequest request, ServerCallContext context) {
        string guid = Guid.NewGuid().ToString();
        string filePath = $"D:\\{guid}.dwg";
        // 绘图，由于AutoCAD只支持串行化操作，因此需要通过AcadOperationQueue排队执行
        await AcadOperationQueue.EnqueueAsync(() => {
            // 每次创建一个新文档
            Document doc = AcadApp.DocumentManager.Add("acadiso.dwt");
            Database db = doc.Database;
            using (var docLocker = doc.LockDocument()) {
                using (Transaction tr = db.TransactionManager.StartTransaction()) {
                    BlockTable bt = (BlockTable)tr.GetObject(db.BlockTableId, OpenMode.ForRead);
                    BlockTableRecord btr = (BlockTableRecord)tr.GetObject(bt[BlockTableRecord.ModelSpace], OpenMode.ForWrite);
                    for (int i = 0; i < 100; i++) {
                        Line line = new Line(
                            new Autodesk.AutoCAD.Geometry.Point3d(request.X1 + 10 * i, request.Y1 + 10 * i, 0),
                            new Autodesk.AutoCAD.Geometry.Point3d(request.X2 + 10 * i, request.Y2 + 10 * i, 0)
                        );
                        btr.AppendEntity(line);
                        tr.AddNewlyCreatedDBObject(line, true);
                    }
                    tr.Commit();
                }
                doc.SendStringToExecute("zoom a ", true, false, false);
            }
            db.SaveAs(filePath, DwgVersion.Current);
            doc.CloseAndDiscard();
        });

        // 通过minio上传成果文件
        const string endpoint = "192.10.223.137:9000";
        const string accessKey = "admin";
        const string secretKey = "Lizi@710";
        const string bucketName = "dwgs";
        using var minio = new MinioService(endpoint, accessKey, secretKey, useSSL: false);
        await minio.UploadFileAsync(bucketName, $"{guid}.dwg", filePath);

        return new LineResponse { IsSuccess = true, FilePath = $"{guid}.dwg" };
    }
}

注意：AutoCAD只支持串行化操作，当多用户同时发送绘图请求时会出问题，必须对绘图请求进行串行化，这里的AcadOperationQueue.EnqueueAsync()就是这个作用，非常关键！代码如下：

public static class AcadOperationQueue {
    private static SynchronizationContext? _context = null;
    private static readonly SemaphoreSlim _semaphore = new SemaphoreSlim(1, 1);

    public static void Initialize() {
        _context = SynchronizationContext.Current;
    }

    public static async Task EnqueueAsync(Action action) {
        await EnqueueAsync(() => {
            action();
            return 0;
        });
    }

    public static async Task<T> EnqueueAsync<T>(Func<T> operation) {
        await _semaphore.WaitAsync();

        try {
            return Send(operation);
        } catch (Exception ex) {
            throw new InvalidOperationException($"{ex.Message}", ex);
        } finally {
            _semaphore.Release();
        }
    }

    private static T Send<T>(Func<T> func) {
        if (_context == null) throw new InvalidOperationException("AcadSyncContext 未初始化");

        T result = default(T);
        var tcs = new TaskCompletionSource<bool>();

        _context.Send(_ => {
            try {
                result = func();
                tcs.SetResult(true);
            } catch (Exception ex) {
                tcs.SetException(ex);
            }
        }, null);

        tcs.Task.Wait();
        return result;
    }
}

客户端测试

internal class Program {
    static async Task Main(string[] args) {
        var channel = GrpcChannel.ForAddress("http://localhost:50051");
        var client = new Drawer.DrawerClient(channel);
        var response = await client.DrawLineAsync(
            new LineRequest { X1 = 0.0, Y1 = 0.0, X2 = 1000.0, Y2 = 500.0 }
        );
        // 通过MinIO下载成果文件...
        Console.ReadKey();
    }
}
