自定义实体的CLI封装

在进行CAD二次开发的技术选型时，建议主体使用.NET技术栈（.NET生态丰富，开发效率较高）；当涉及自定义实体等高级功能时，可以切换到C++技术栈，并且用CLI混合编程方式对其进行封装供.NET项目使用。这样就可以兼顾开发效率和功能两个因素了！

在创建自定义实体（详见：自定义实体的创建和使用）的基础上，如何对自定义实体进行CLI封装，请看下文！

下一篇文章将讲解如何使用COM技术封装自定义实体，从而为自定义实体添加属性面板，这可以给用户提供修改自定义实体属性的界面接口，非常实用，敬请期待！

自定义实体的CLI封装

用ObjectARX向导创建自定义实体的项目模板比较方便，主要步骤如下：

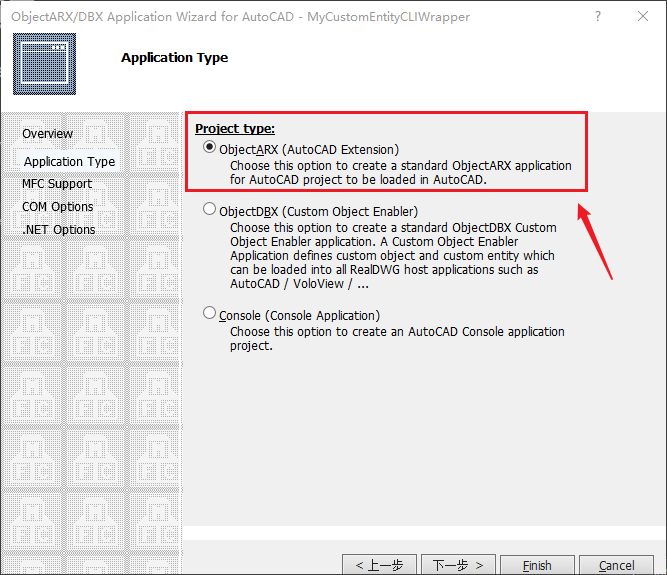

  • 创建ObjectARX项目

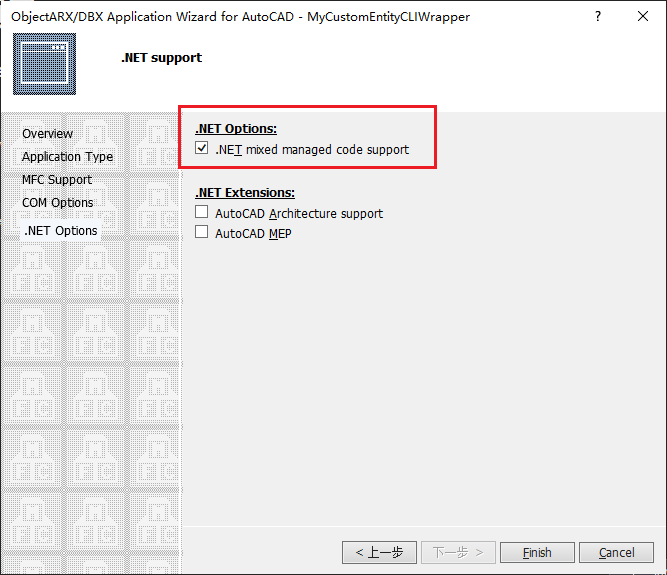

  • 添加混合编程支持

接下来的主要工作就是实现自定义实体包装类的代码逻辑。

  • 头文件
    • 定义继承自Autodesk::AutoCAD::DatabaseServices::Entity的C#自定义实体
    • 核心机关在CustomEntity1CLIWrapper(System::IntPtr unmanagedPointer, bool autoDelete)构造函数，可以通过System::IntPtr(new CustomEntity1())向其传递C++对象实例，后续方法实现中就可以调用自定义实体中的方法了
    • 这里设计CLI属性用法
    • 在C#项目中，就转变成C#类和属性
    • GetImpObj()方法返回非托管自定义实体对象
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
#pragma once
#include "StdAfx.h"
#include "../MyCustomEntity/CustomEntity1.h"

using namespace System;
using namespace Autodesk::AutoCAD::Geometry;
using namespace Autodesk::AutoCAD::DatabaseServices;

namespace CLIWrapper {
    [Autodesk::AutoCAD::Runtime::Wrapper("CustomEntity1")]
    public ref class CustomEntity1CLIWrapper :public Autodesk::AutoCAD::DatabaseServices::Entity
    {
    public:
        CustomEntity1CLIWrapper();

    internal:
        CustomEntity1CLIWrapper(System::IntPtr unmanagedPointer, bool autoDelete);

        inline CustomEntity1* GetImpObj()
        {
            return static_cast<CustomEntity1*>(UnmanagedObject.ToPointer());
        }

    public:
        property Point3d Center {
            void set(Point3d point);
            Point3d get();
        }

        property double R1 {
            void set(double d);
            double get();
        }

        property double R2 {
            void set(double d);
            double get();
        }

        property int N {
            void set(int i);
            int get();
        }
    };
}
  • 源文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
#include "stdafx.h"
#include "CustomEntity1CLIWrapper.h"
#include "mgdinterop.h"
#include "../MyCustomEntity/CustomEntity1.h"

CLIWrapper::CustomEntity1CLIWrapper::CustomEntity1CLIWrapper()
    :Autodesk::AutoCAD::DatabaseServices::Entity(System::IntPtr(new CustomEntity1()), true){}
CLIWrapper::CustomEntity1CLIWrapper::CustomEntity1CLIWrapper(System::IntPtr unmanagedPointer, bool autoDelete)
    : Autodesk::AutoCAD::DatabaseServices::Entity(unmanagedPointer, autoDelete){}

void CLIWrapper::CustomEntity1CLIWrapper::Center::set(Point3d point) {
    Autodesk::AutoCAD::Runtime::Interop::Check(GetImpObj()->setCenter(GETPOINT3D(point)));
}
Point3d CLIWrapper::CustomEntity1CLIWrapper::Center::get() {
    return ToPoint3d(GetImpObj()->getCenter());
}

void CLIWrapper::CustomEntity1CLIWrapper::R1::set(double d) {
    Autodesk::AutoCAD::Runtime::Interop::Check(GetImpObj()->setR1(d));
}
double CLIWrapper::CustomEntity1CLIWrapper::R1::get() {
    return GetImpObj()->getR1();
}

void CLIWrapper::CustomEntity1CLIWrapper::R2::set(double d) {
    Autodesk::AutoCAD::Runtime::Interop::Check(GetImpObj()->setR2(d));
}
double CLIWrapper::CustomEntity1CLIWrapper::R2::get() {
    return GetImpObj()->getR2();
}

void CLIWrapper::CustomEntity1CLIWrapper::N::set(int i) {
    Autodesk::AutoCAD::Runtime::Interop::Check(GetImpObj()->setN(i));
}
int CLIWrapper::CustomEntity1CLIWrapper::N::get() {
    return GetImpObj()->getN();
}

  • 修改入口文件

    在On_kInitAppMsg()和On_kUnloadAppMsg()中添加注册代码

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    #include "StdAfx.h"
    #include "resource.h"
    #include "../MyCustomEntity/CustomEntity1.h"
    #include "CustomEntity1CLIWrapper.h"

    #define szRDS _RXST("LH")
    // 添加这里
    static AcMgObjectFactoryBase** g_PEs = NULL;

    class CMyCustomEntityCLIWrapperApp : public AcRxArxApp {
    public:
        CMyCustomEntityCLIWrapperApp() : AcRxArxApp() {}

        virtual AcRx::AppRetCode On_kInitAppMsg(void* pkt) {
            // TODO: Load dependencies here
            // You *must* call On_kInitAppMsg here
            AcRx::AppRetCode retCode = AcRxArxApp::On_kInitAppMsg(pkt);

            // 添加这里
            static AcMgObjectFactoryBase* PEs[] =
            {
                new AcMgObjectFactory<CLIWrapper::CustomEntity1CLIWrapper ,CustomEntity1>(),
                NULL
            };
            g_PEs = PEs;

            return (retCode);
        }

        virtual AcRx::AppRetCode On_kUnloadAppMsg(void* pkt) {
            // TODO: Add your code here
            // You *must* call On_kUnloadAppMsg here
            AcRx::AppRetCode retCode = AcRxArxApp::On_kUnloadAppMsg(pkt);

            // 添加这里
            int i = 0;
            while (g_PEs[i] != NULL)
                delete g_PEs[i++];

            return (retCode);
        }

        virtual void RegisterServerComponents() {
        }
    };

    IMPLEMENT_ARX_ENTRYPOINT(CMyCustomEntityCLIWrapperApp)

测试

下面在.NET项目中进行测试，通过Add()添加一个自定义实体，然后通过Modify()修改其圆心坐标。使用起来与内置实体无异。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.Runtime;
using CLIWrapper;
using AcadApp = Autodesk.AutoCAD.ApplicationServices.Application;

[assembly: CommandClass(typeof(TestWrapper.Cmds))]

namespace TestWrapper
{
    public static class Cmds
    {
        [CommandMethod("Add")]
        public static void Add()
        {
            var doc = AcadApp.DocumentManager.MdiActiveDocument;
            var db = doc.Database;

            using(var tr = db.TransactionManager.StartTransaction())
            {
                var blockTable = tr.GetObject(db.BlockTableId, OpenMode.ForRead) as BlockTable;
                var modelSpace = tr.GetObject(blockTable[BlockTableRecord.ModelSpace], OpenMode.ForWrite) as BlockTableRecord;

                CustomEntity1CLIWrapper ent = new CustomEntity1CLIWrapper();
                ent.Center = new Autodesk.AutoCAD.Geometry.Point3d(1000,1000,0);

                modelSpace.AppendEntity(ent);
                tr.AddNewlyCreatedDBObject(ent, true);
                tr.Commit();
            }
        }

        [CommandMethod("Modify")]
        public static void Modify()
        {
            var doc = AcadApp.DocumentManager.MdiActiveDocument;
            var db = doc.Database;
            var ed = doc.Editor;

            var res = ed.GetEntity("请选择目标自定义实体");
            if (res.Status != Autodesk.AutoCAD.EditorInput.PromptStatus.OK)
                return;
            var id = res.ObjectId;
            using (var tr = db.TransactionManager.StartTransaction())
            {
                var ent = id.GetObject(OpenMode.ForWrite) as CustomEntity1CLIWrapper;
                ent.Center = new Autodesk.AutoCAD.Geometry.Point3d(2000,2000,0);
                ent.N = 6;

                tr.Commit();
            }
        }
    }
}

测试无误，封装成功！
